Products
Framed Walls
SYMBIO Framed Walls provide the value, performance, and versatility to meet the needs of today's interior office environments. The thoughtfully designed framework allows significant flexibility in design, materiality, and other options for custom applications.
Glazed
Glazed panels are available in single and double glazed options. They provide a beautiful and high performance glass panel option for any interior application.
- Supports 1/4″, 3/8″, and 1/2″ thicknesses.
- Tempered, laminated and other decorative glass is available.
- Factory glazed unitized frames for simple install.
- Up to 40 STC.
Solid
Solid panels offer multiple design options, functions, and finishes to quickly and efficiently create high acoustically performing spaces.
- Available in insert, outsert, and flush configurations.
- Steel, MDF and tackable substrates are available.
- Electrical integration is available.
- Finishes include vinyl, fabric, plastic laminate, and powder coat.
Divided Lite
Divided Lite panels offer the flexibility to divide the panel frame to achieve the perfect design for all applications.
- Horizontal and vertical panel frame subdivision options are available.
- They are asymmetrical configuration capable.
- No division modules to follow.
- All glazing and solid infills are available in each line.
System Attributes
The SYMBIO Framed Wall System offers the functionality and adaptability required by the office environments of today and the flexibility to meet the needs of those of tomorrow as well.
Unitized Construction
Unitized construction allows for fast and efficient installation with minimal disruption to occupied spaces.
Multiple Base Conditions
Multiple base conditions allows the flexibility to achieve a variety of form and functional goals. Height adjustability from 0 - 1.5".
Inserts
Inserts are flush to the frame and come in hard and tackable varieties. These can be covered in a wide variety of surface finishes.
Outserts
Outserts are proud of the frame and offer a higher acoustically performing panel with less exposed frame. They also come in hard and tackable varieties that can be covered in the same range of materials as the inserts.
Flush Inserts
These entirely cover the frame offering the most monolithic look available within our panel types. They have the highest acoustical rating as well.
Center Glazed Configurations
Center glazed configurations offer the ability to capture glass or other materials in 1/4", 3/8", or 1/2" thicknesses within the middle of the frame.
Double Glazed Configurations
Double glazed configurations offer the highest clear glass acoustical performance option. They eliminate the challenges of field double glazing.
Adjustability
Adjustability means flexibility in the field and the is best way to assure project schedules hold even when deviations in the field are incurred. There are three options - 1", 2.5", and 4".
Integration
Seamless integration with Frameless and Groove.
Available Finishes
SYMBIO Framed panels and associated infills support a wide range of finishes. Our standards are included below, but they easily support custom finishes and those represented by other manufacturers for project consistency.
AN
Clear Anodized
AW
Apollo White
BA
Black Arch
BD
Bonded Aluminum
BM
Black Matte
BU
Black Undertone
CG
Cosmic Grey
CH
Metallic Champagne
DB
Dark Bronze
GS
Gray Storm
KH
Khaki
MB
Medium Bronze
MC
Mocha
PW
Powder White
SB
Steel Blue
SL
Slate
SW
Show White
BT-W
Barnwood
CB-W
Charcoal Barnwood
LM-W
Lighter Maple
SP-W
Southern Pecan
CT-W
Super Cherry
DW-W
Super Dark National Walnut
DT-W
Super Douglas
LW-W
Super Light National Walnut
MT-W
Super Mediterranean
OT-W
Super Oak
5295-4
Dark Walnut
5295-6
Deep Honey
5295-5
Homestead
5295-7
Honey
5295-1
Nut Brown
5295-2
Clear
5295-3
Brown Sugar
8301
Off White
8303
Inner Tone Light Light
8304
Inner Tone Light
8309
China
8315
White
8316
Soft White
8317
Sandstone
8318
Folkstone Grey
7919K
Amber Cherry
7949K
Asian Night
7850
Beigewood
7924K
Biltmore Cherry
1595
Black
4880
Carbon Mesh
4943
Classic Linen
4942
Crisp Linen
D354
Designer White
D92
Dove Grey
D381
Fashion Grey
8208K
Fawn Cypress
7993
Florence Walnut
1573
Frosty White
7909
Fusion Maple
1500
Grey
10776
Kensington Maple
D427
Linen
5012K
Magnolia
D30
Natural Almond
D90
North Sea
4779
Pewter Brush
4878
Pewter Mesh
8211K
Phantom Pearl
7992
Pinnacle Walnut
D315
Platinum
4830
Satin Stainless
D96
Shadow
7964K
Skyline Walnut
D91
Slate Grey
4879
Steel Mesh
7995
Sterling Ash
7960K
Studio Teak
7965K
Walnut Heights
7054
Wild Cherry
Note: Color samples are representative of the material to be supplied, and may not indicate an exact match; some variation may occur. Finishes represented on this page may not reproduce correctly if printed.

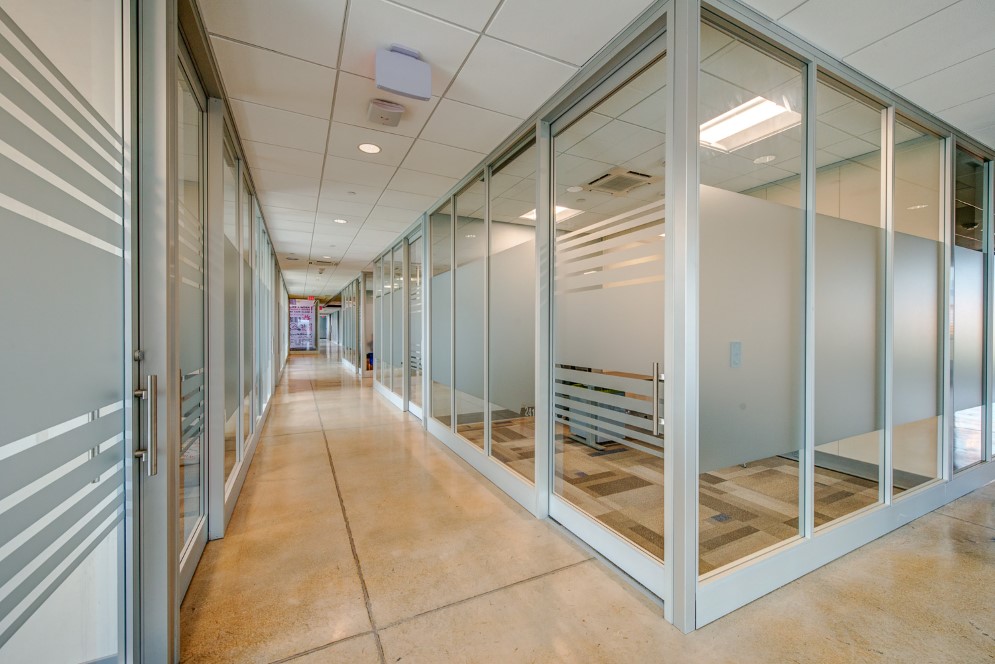

Framed Panel Projects
Our framed panels are designed specifically with flexibility in mind. Below you will see a wide variety of projects that showcase creativity that can be achieved with the panels.

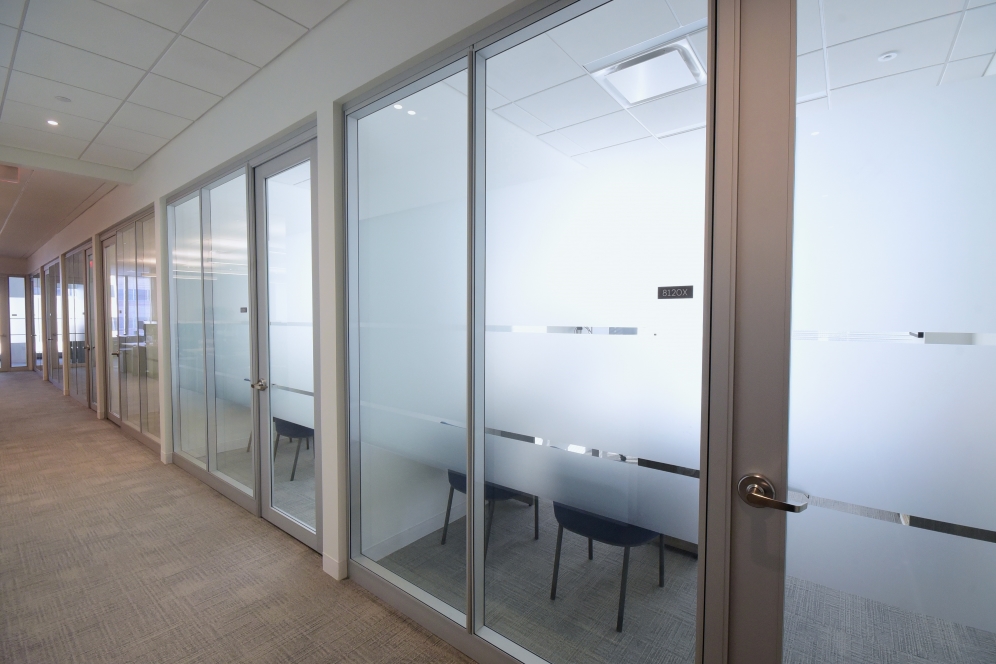

PROJECT DETAILS
Framed
New York, NY
Corporate
Aluminum Glass Hinged Door
Clear Anodized Aluminum Finish

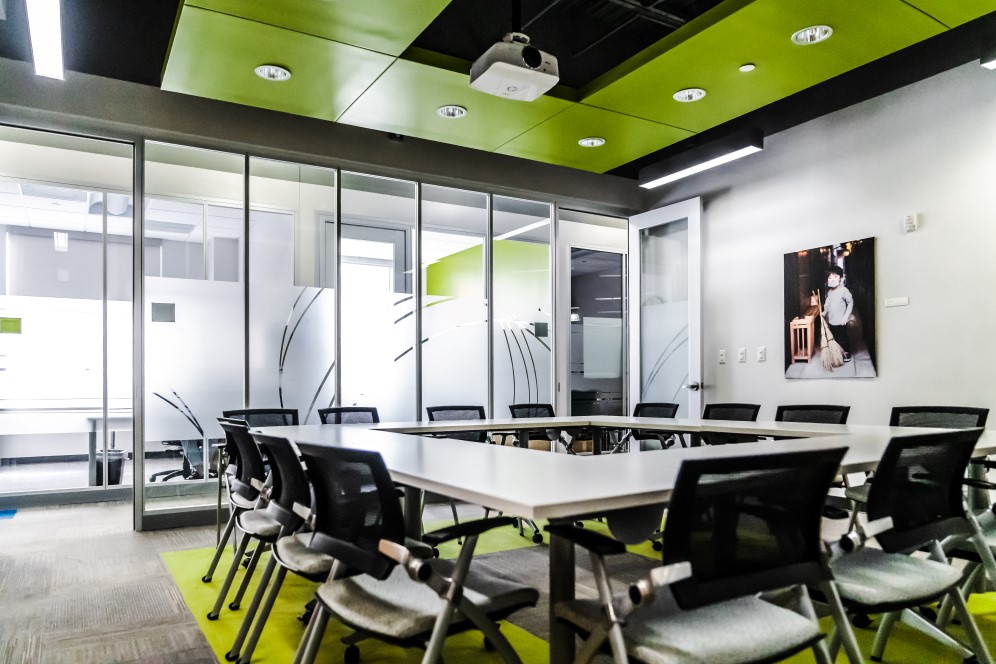

PROJECT DETAILS
Framed
Washington, D.C.
Corporate
Aluminum Glass Hinged Door
Clear Anodized Aluminum Finish

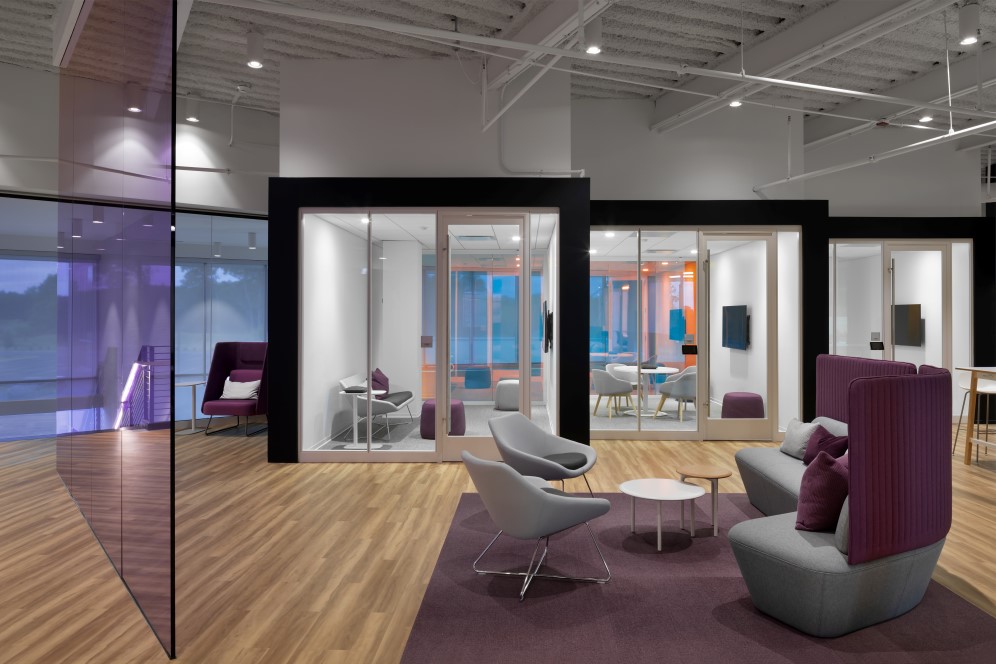

PROJECT DETAILS
Framed
Charlotte, NC
Industrial
Aluminum Glass Hinged Door
Gray Aluminum Finish
Laminate Finish

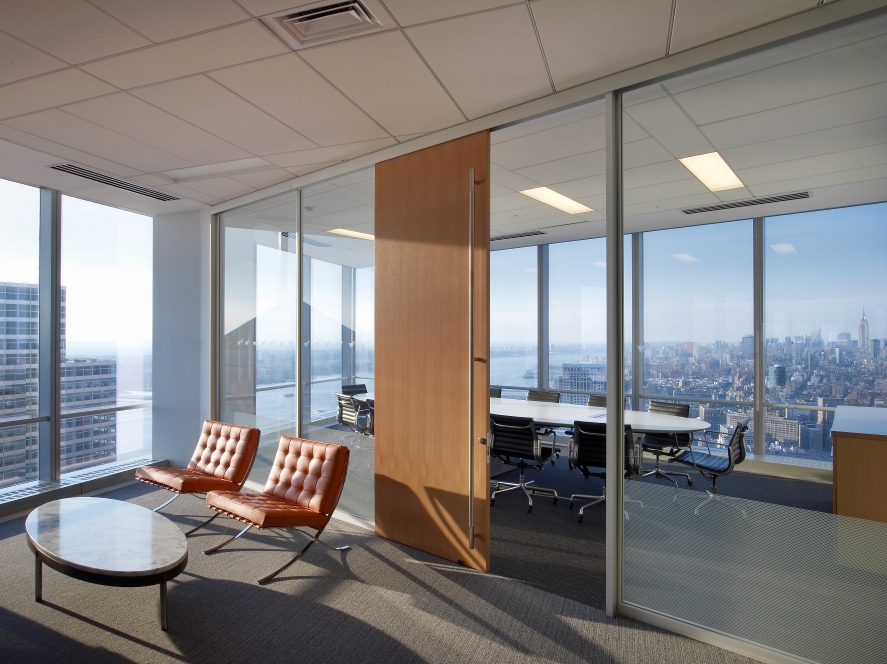

PROJECT DETAILS
Framed
Charlotte, NC
Corporate
Aluminum Glass Hinged Door
White Aluminum Finish
Custom Finish

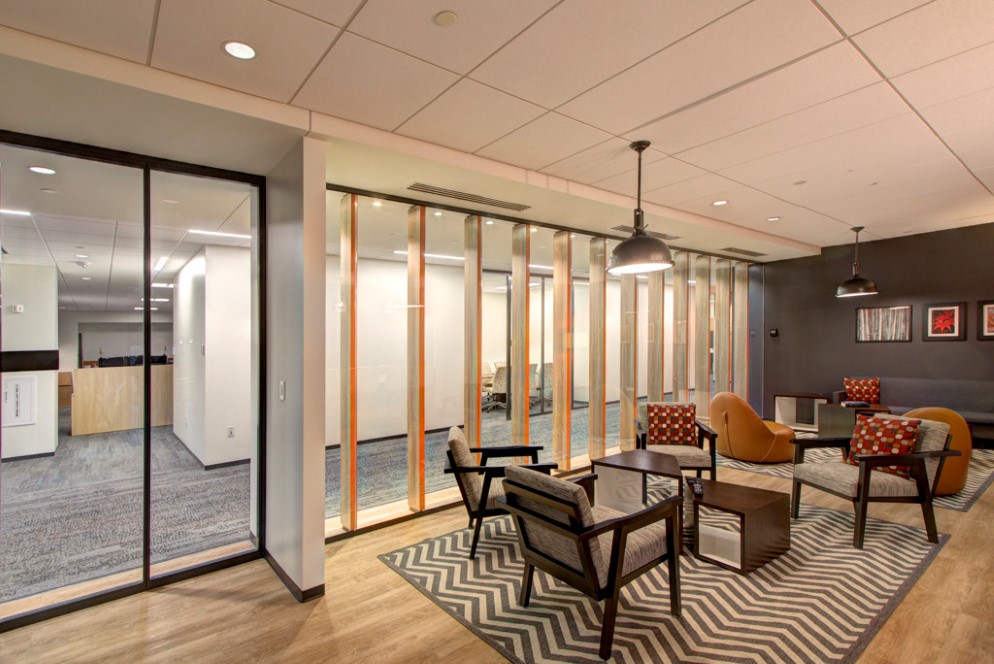

PROJECT DETAILS
Framed
Dallas, TX
Corporate
Aluminum Glass Hinged Door
Clear Anodized Aluminum Finish
PROJECT DETAILS
Framed
Dallas, TX
Corporate
Aluminum Glass Sliding Door
Clear Anodized Aluminum Finish
"Thank you for the help in providing us our walls. We absolutely love it and have to say that working with you all was one of the easiest parts of our project! Your team will always be our go-to when it comes to recommending glass walls and doors."
Anonymous
Download Our Esheet
Are you looking to share our Framed product with others? Click the link below to download our esheet that’ll provide you with further details and features.
HOW CAN WE HELP?
Let SYMBIO Complete Your Vision.
We would love to hear more about your ideas, thoughts, concerns, schedules, etc. Let us help! Send us what you're thinking and we'll get started.
Start a Project
